Ball Mill and SAG Mill Use Grinding ball and grinding cylpebs for Cement or Mine Grinding
Short Description:
Product Description

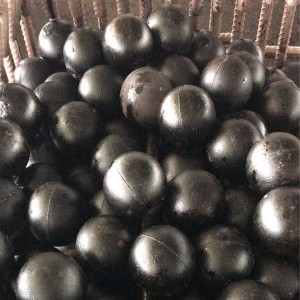

Grinding Ball size range from 12-125 mm, 45-65 HRC, 1-23 % Cr. content.

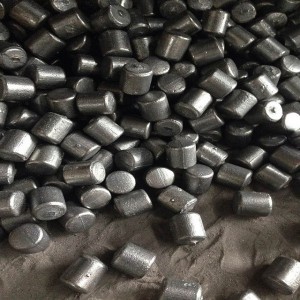

Grinding Cylpeb of required sizes 45-65 HRC, 1-23 % Cr. content.
The Grinding Media is produced by full-Auto casting lines, certified under international quality standards.
We guarantee our Grinding Ball has low breakage rate, lower wear of consumption, and fast delivery terms.
Specification Available
|
Name |
Chemical Element（%） |
|||||||
|
C |
Si |
Mn |
Cr |
Mo |
Cu |
P |
S |
|
|
High-Cr Alloyed Grinding Ball and Grinding Cylpeb |
2.0-3.3 |
≤1.0 |
0.3-1.5 |
10-23 |
0-3.0 |
0-1.2 |
≤0.06 |
≤0.06 |
|
Low-Cr Alloyed Grinding Ball and Grinding Cylpeb |
1.8-3.6 |
≤1.5 |
0.3-1.5 |
1-6 |
0-1.0 |
0-0.8 |
≤0.06 |
≤0.06 |
Physical Property & Microstructure
| Name |
Hardness （HRC） |
Impact Ak（J/cm2） |
Microstructure |
Times of Falling Balls |
||
|
High-Cr Alloyed Grinding Ball and Grinding Cylpeb |
≥60 |
≥4.0 |
M+C+A |
≤Φ80 |
≥15000 |
|
|
≥Φ80 |
≥10000 |
|||||
|
Low-Cr Alloyed Grinding Ball and Grinding Cylpeb |
≥45 |
≥2.5 |
P+C |
≤Φ80 |
≥12000 |
|
|
≥Φ80 |
≥10000 |
|||||
|
M-Martensite C-Carbide A-Austenite P-Pearlite |
||||||
Grinding Ball Specification
|
Size（mm） |
Weight（kg） |
Quantity（pc/t） |
|
Size（mm） |
Weight（kg） |
Quantity（pc/t） |
|
Φ17 |
0.027 |
37037 |
Φ70 |
1.37 |
729 |
|
|
Φ20 |
0.032 |
31250 |
Φ80 |
2.05 |
487 |
|
|
Φ30 |
0.11 |
9091 |
Φ90 |
2.90 |
345 |
|
|
Φ40 |
0.25 |
3891 |
Φ100 |
4.00 |
250 |
|
|
Φ50 |
0.50 |
2000 |
Φ110 |
5.30 |
188 |
|
|
Φ60 |
0.86 |
1153 |
Φ120 |
6.80 |
147 |
Grinding Cylpeb Specification
|
Size(mm) |
Ф10series |
Ф12series |
Ф14series |
Ф16series |
Ф18series |
Ф20series |
|
Ф25series |
Ф30series |
Ф35series |
Ф40series |
Ф45series |
Ф50series |
Note: Adjust the chemical content or add other alloying elements of Grinding Ball and Grinding Cylpeb according to customer needs is available.
Product Package
● Nylon Ton Bag: Net Weight: 1000 kgs; Gross Weight: 1002kgs
● Steel Drum: Net Weight: 850 – 900 kgs; Gross Weight: 865 – 915 kgs
Application
Our Grinding Ball and Grinding Cylpeb are widely used in the grinding stage for mining industry, cement industry, thermal power plant, paper-making and chemical industry etc.
